Bellows and disc couplings with higher torque capacity

Ruland now offers bellows and double disc couplings with bore sizes up to 45 mm or 1-3/4 in for use in systems with torque up to 158 Nm (1,4000 in-lbs).

Ruland now offers bellows and double disc couplings with bore sizes up to 45 mm or 1-3/4 in for use in systems with torque up to 158 Nm (1,4000 in-lbs). High torque applications commonly found in precision semiconductor, solar, conveyor, and factory automation applications often use these shaft sizes. Ruland disc and bellows couplings accommodate all forms of misalignment, are zero-backlash, and have a balanced design for reduced vibration at speeds up to 10,000 rpm.



Ruland bellows couplings have the highest size-for-size torque and torsional stiffness capacity of Ruland flexible couplings. They are comprised of two anodized aluminium hubs mated to a stainless steel bellows. The thin walls of the bellows allow it to remain flexible under misalignment conditions while maintaining rigidity under torsional loads.



Double disc couplings offer more misalignment than bellows couplings at the expense of torque and stiffness. They are made from two anodized aluminium hubs, two sets of disc springs, and an anodized aluminium center spacer. The double disc design allows the sets of disc springs to operate independently of each other for full misalignment capabilities.



"The expansion of our bellows and disc coupling product lines to incorporate couplings with higher torque capacity, allows designers to use a Ruland coupling with larger shafting," says Bill Hewitson, President of Ruland Manufacturing. "Through our design process and rigorous physical product testing, we are bringing to market couplings that exceed what is currently available. I look forward to partnering with our many OEM and distribution customers on these new products."



Ruland manufactures disc and bellows couplings from meticulously selected North American bar stock in 2024 aluminium for lightweight and low inertia. They are offered with clamp style hubs with or without keyways in bore sizes ranging from 3 mm (1/8 in) to 45 mm (1-3/4 in). Bellows and disc couplings are carefully made in Ruland’s ISO 9001:2015 certified advanced manufacturing facility in Marlborough, Massachusetts, under strict quality controls using proprietary processes. They are RoHS3, REACH, and Conflict Minerals compliant.



Summary:

  • Best balance of torque, torsional stiffness, and misalignment in the industry
  • Speeds up to 10,000 rpm due to a balanced design
  • Bellows and disc couplings with bores up to 45 mm or 1-3/4 in
  • Ratings validated through thorough physical testing
  • Carefully manufactured in Ruland’s advanced manufacturing facility in Marlborough, Massachusetts



Pictures:

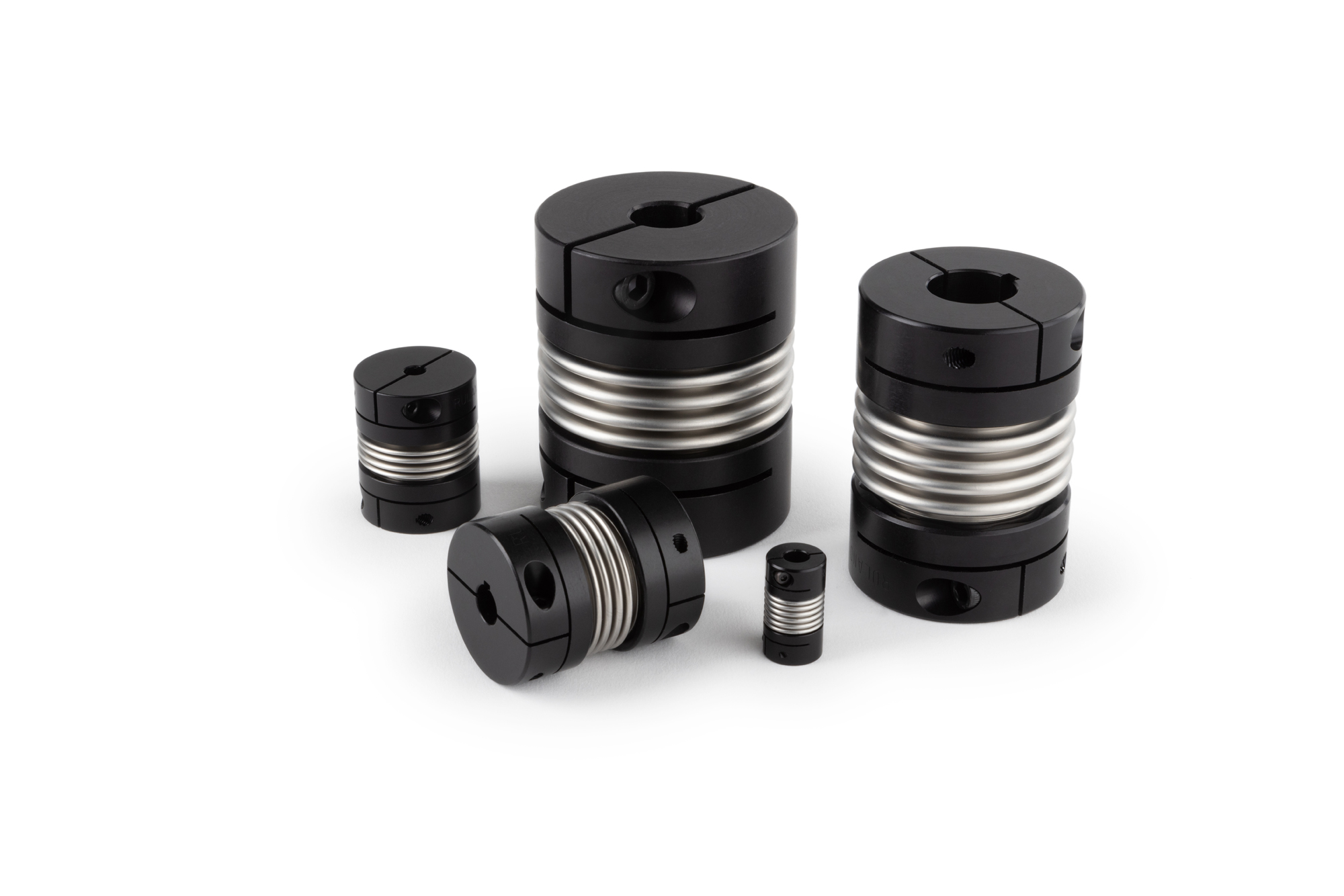

Ruland bellows couplings and disc couplings now have bores up to 45 mm (1-3/4 in) and torque up to 158 Nm (14,000 in-lbs)
